Auto Parts Forming Hydraulic Press Machine

Product model：Yz71-1000T

Product number：06

Feature：

Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automati

Details

CAR INNER DECORATION HYDRAULIC PRESS

Yz71 Series

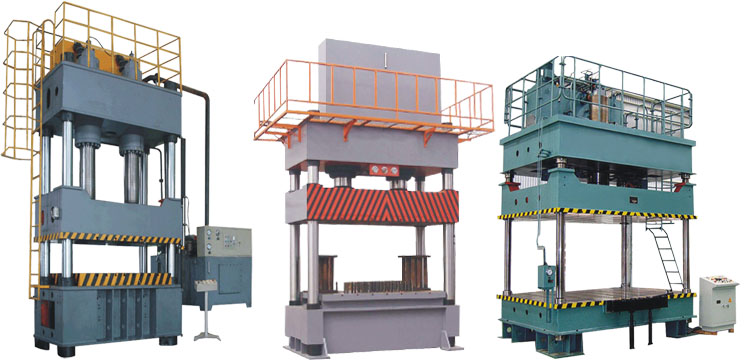

MACHINE APPEARANCE

PRESSING PROCESS DIAGRAM

DATA SHEET

Parameter			unit	Yz71-150T	Yz71-200T	Yz71-250T	Yz71-315T	Yz71-400T	Yz71-500T	Yz71-630T	Yz71-1000T
Nominal Force			KN	1500	2000	2500	3150	4000	5000	6300	10000
Cushion pressure			KN	400	630	1000	1500	1500	2000	2500	3150
Max working pressure of liquid			MPA	25	25	25	25	25	25	25	25
Opening height			mm	900	900	1200	1250	1250	1500	1600	1800
slide stroke			mm	600	600	800	800	900	900	900	1000
Ejection stroke			mm	200	250	300	300	400	400	400	500
table size	Left -right		mm	900	1000	1250	1500	2000	2800	3000	3800
table size	Front - back		mm	700	800	900	1000	1500	1600	1800	2000
Hydraulic cushion size		Left-right	mm	500	600	800	1000	1400	2200	2200	3000
Hydraulic cushion size		Front-back	mm	300	500	600	700	1100	1100	1200	1400
Speed of hydraulic cushion		rising	mm	40-50	40-50	40-50	40-50	40-50	50-60	50-60	50-60
Speed of hydraulic cushion		back	mm	60-70	60-70	60-70	60-70	60-70	60-80	60-80	60-80
Slider speed	down		mm/s	80	80	100	100	120	120	120	150
	Work		mm/s	5-15	5-15	5-15	5-15	5-15	5-15	5-15	5-15
	Back		mm/s	80	80	80	90	90	90	100	100
floor area	Left-right		mm	2900	3200	3600	3800	4100	4100	4300	5200
floor area	Front-back		mm	1200	1200	1400	1600	1800	1800	2200	3100
Power			kw	11	15	18.5	22	36	44	57	74

OPTIONAL ACCESSARIES

ACCESSARIES BRAND
